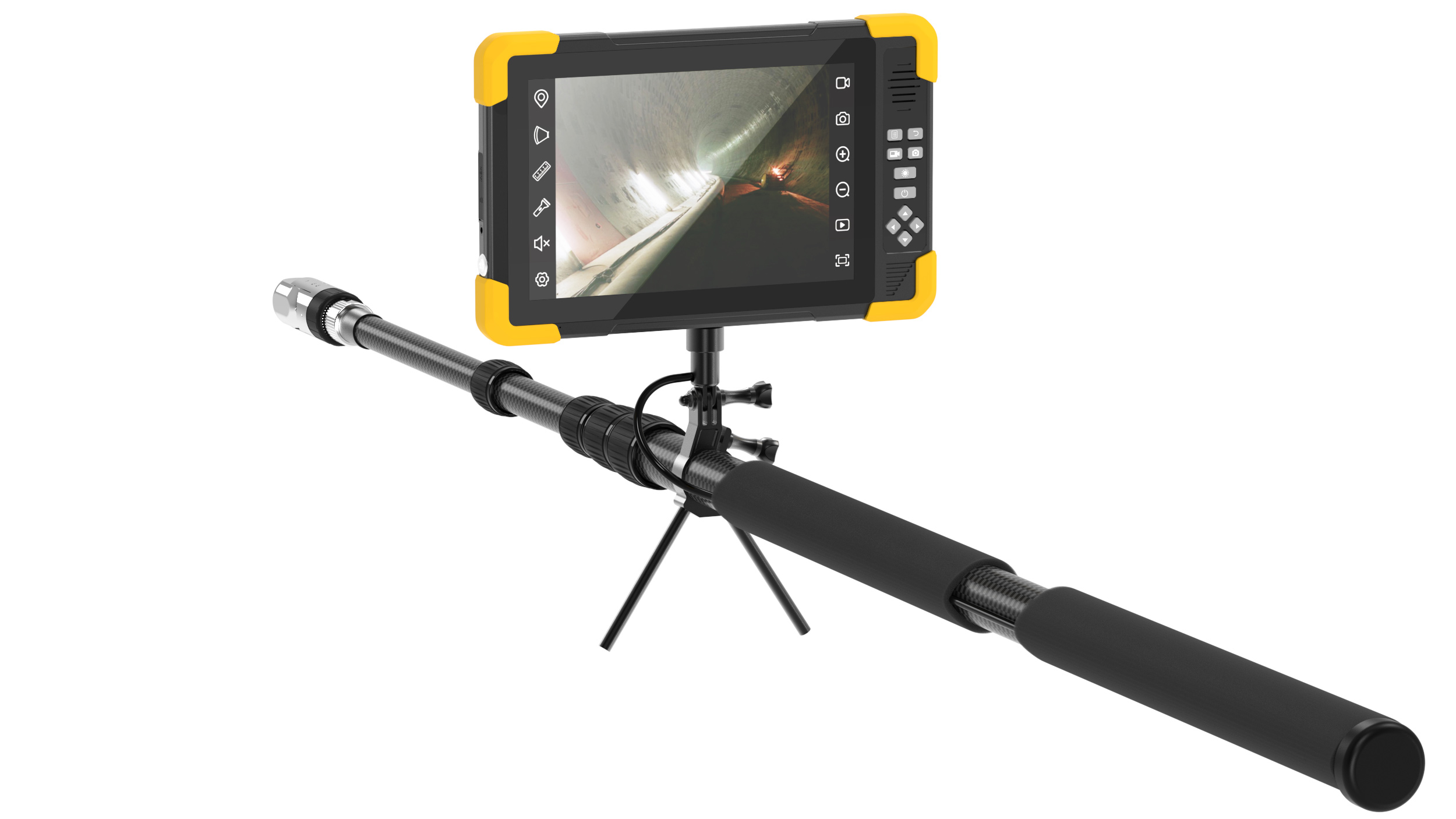

TTS-S14IR(wifi)

360º 4K telescopic camera

  • 5 megapixel Sony sensor camera with microphone and speaker via the control box
  • 360° horizontal circle rotation and 180° vertical rotation
  • 12 LEDs adjustable via the monitor
  • 940 infrared light * 5m foldable telescopic pole, 1.4kg
  • 10.1″ HD touch screen with 1280×800 pixel monitor
  • Video recording, photo, playback
  • Built-in Li battery 7500 mAh
  • Working time over 8 hours
  • HDMI output 1080P
  • max. 256GB TF card – 64GB incl.
  • Image Sensor: 1080P SONY Image Sensor
  • Light source: 940 IR LED Lamps
  • Sensitivity: 0.0001Lux/F1.2
  • Lens & View angle: 3.6mm F1.2  (H )160 °
  • Focal length: 20-100cm/7.8inch-39.4inch
  • Camera rotate: 360 ° rotate by control box, up, down, left, right
  • Camera head size: 34.5×51.5mm
  • Size of the screen: 10.1 inch LCD Screen
  • Resolution: 1280×800 Pixels
  • Brightness: 500 cd/㎡
  • Video input: 1080P  HD-TVI
  • Response: <0.1s
  • Power output: 12V 300MA
  • Video LED control: high-light, low-off
  • Effective Pixels (16:9): 1920×1080 Pixels
  • Video Compression: H.264
  • Video Storage: AVI
  • Operation System: Windows & Mac OS
  • Port: USB 2.0/Audio in
  • Language: Multiple
  • Voltage: DC :7-24V,  USB DC:5V
  • AC Adapter: DC5-12V  2A
  • Built-in Battery: Li-battery 7500mAh
  • External SD card: TF card max. 256GB (64GB incl.)
  • Sunshade: Removable One-press open sunshade
  • Dimension: 177mm x120mm x 20mm /                          177mm x120mm x 32mm(with Sunshade Cover)

User manual TTS-S14IR(wifi)
