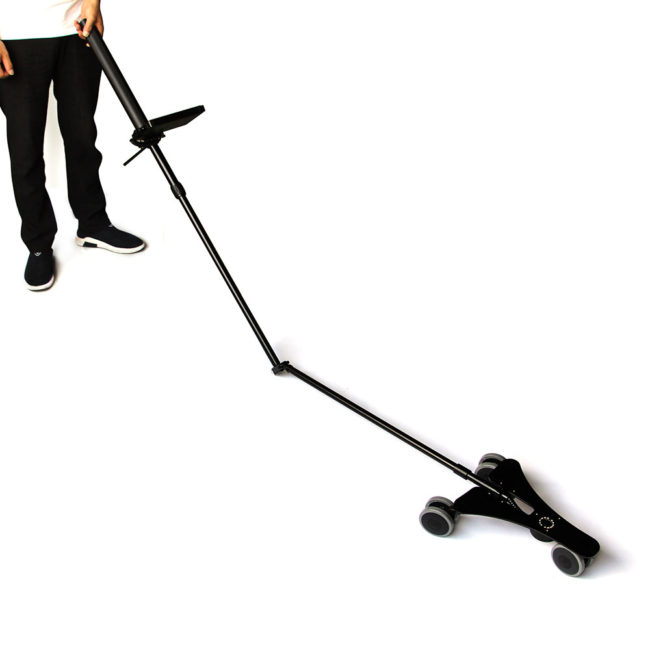

TTS-S12+

Multipurpose Inspection Camera







7” full HD multifunction-DVR-camera

  • 3,5 megapixel full HD digial camera (1.080p)
  • 37 mm Φ minicamera with 16 IR/LED und night vision
  • support MicroSD-card up to 64 GB
  • HDMI Video output
  • support H.264 format
  • 5000 mAh Li battery, about 8 hours working time
  • 2 m adjustable telescope
  • excellent video and photos
  • Size of the screen: 7inch LCD Screen
  • Resolution: 1024 X 600 Pixel
  • Brightness: 500 cd/㎡
  • Video input: 1080P HD-TVI
  • Response: <0.1s
  • Power output: 12V 300MA
  • Video LED control output:          high-light, low-off
  • Effective Pixels: (16:9) 1920x 1080
  • Video Compression Format: H.264
  • Video Storage: AVI
  • Operation System: Windows &    Mac OS
  • Port USB: 2.0/AV-OUT
  • Language: Multiple
  • Voltage: DC :7-24V  USB DC:5V
  • AC Adapter: DC5-12V  2A
  • Built-in Battery: Li-battery 7500mAh
  • Storage: MicroSD card 64 GB
  • Zoom: max. 4 times
  • Sunshade: One-press open sunshade
  • Dimension: 177mm x120mm x 20mm
  • Weight: 0.39KG/0.5KG(with Sunshade Cover)

Diameter of camera head: Ø37×46 mm
Image Sensor: 5MP SONY Image Sensor
Camera illumination: 12 pcs LED lamps, brightness is adjustable
Sensitivity:  0.0001Lux/F1.2
Lens & View angle: (1/2.7″ CMOS)
Video output: HD-TVI
Connector: 4 pin waterproof connector
Cable: 4-core Coaxial cable was hidden in pole

Pole Unfold length: 195 cm
Pole Length: 62 cm
Pole Weight: 1.38KG
Waterproof Class: IP68
Wheels: Reinforced triangular design with 3 wheels to resistant shocks
Size(L*W*H): 29cmx22cmx9.5cm
Weight: 0.98KG
Battery using time: 5 – 8 hours

user manual TTS-S12
