TTS-TJ6.0UV • Titanscope.eu



TTS-TJ6.0UV

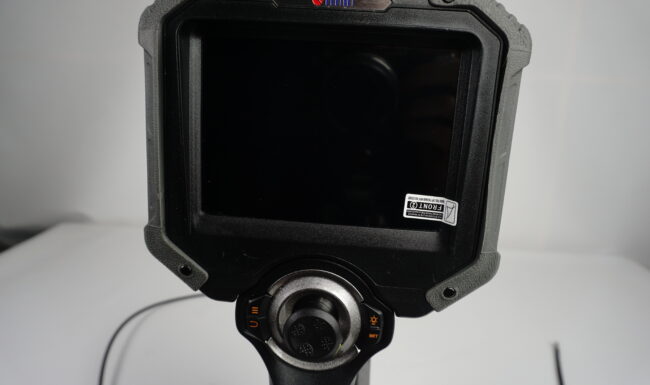

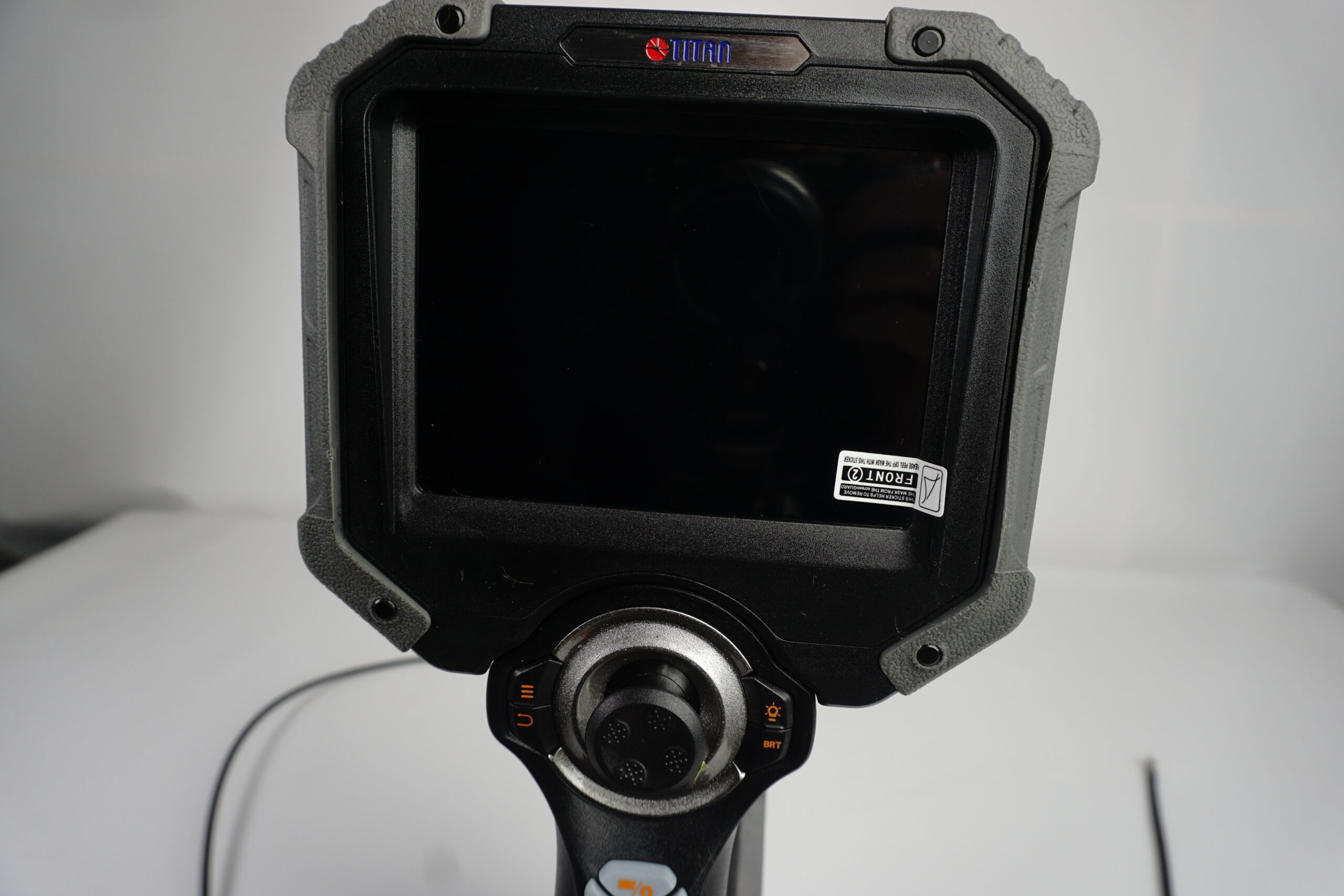

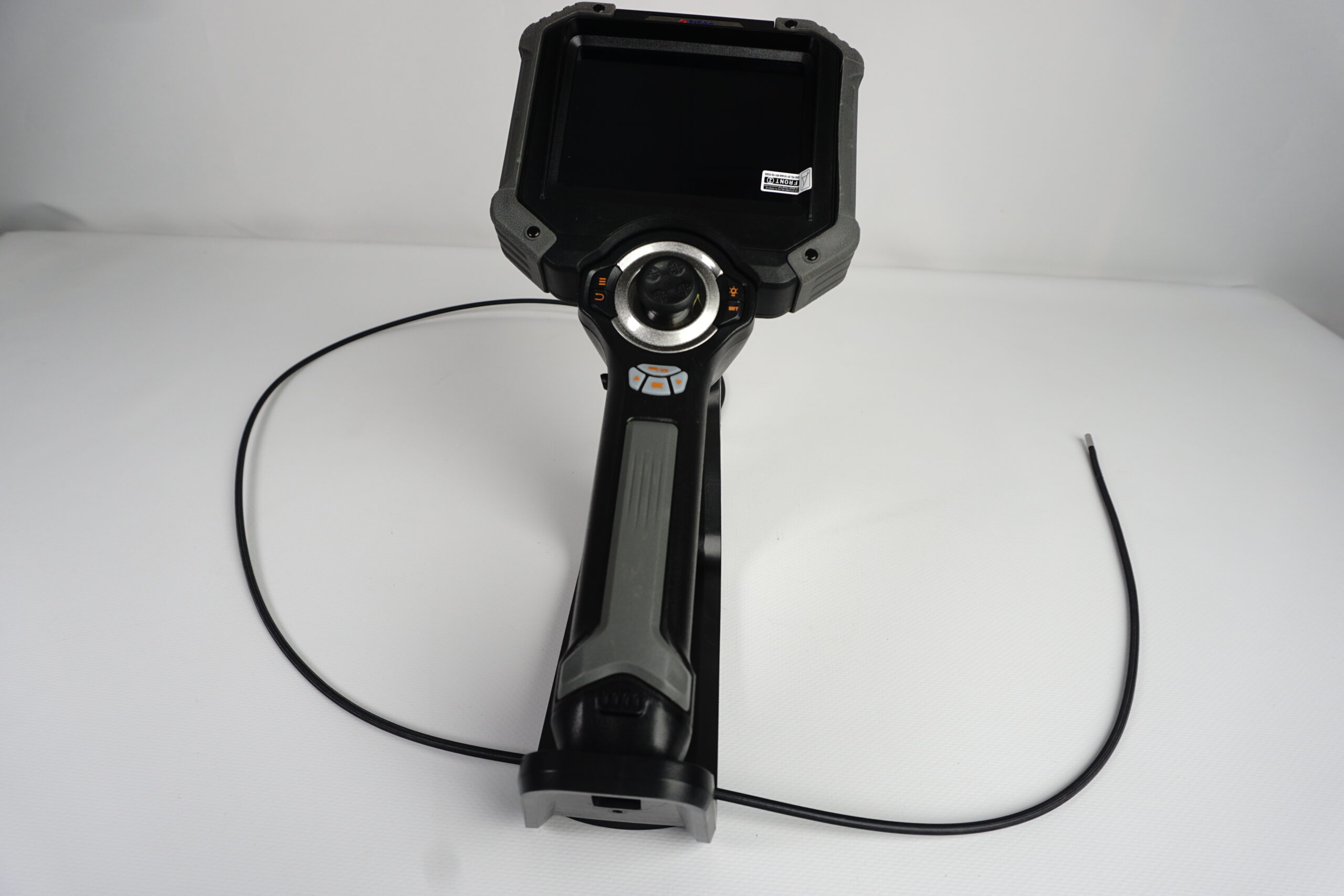

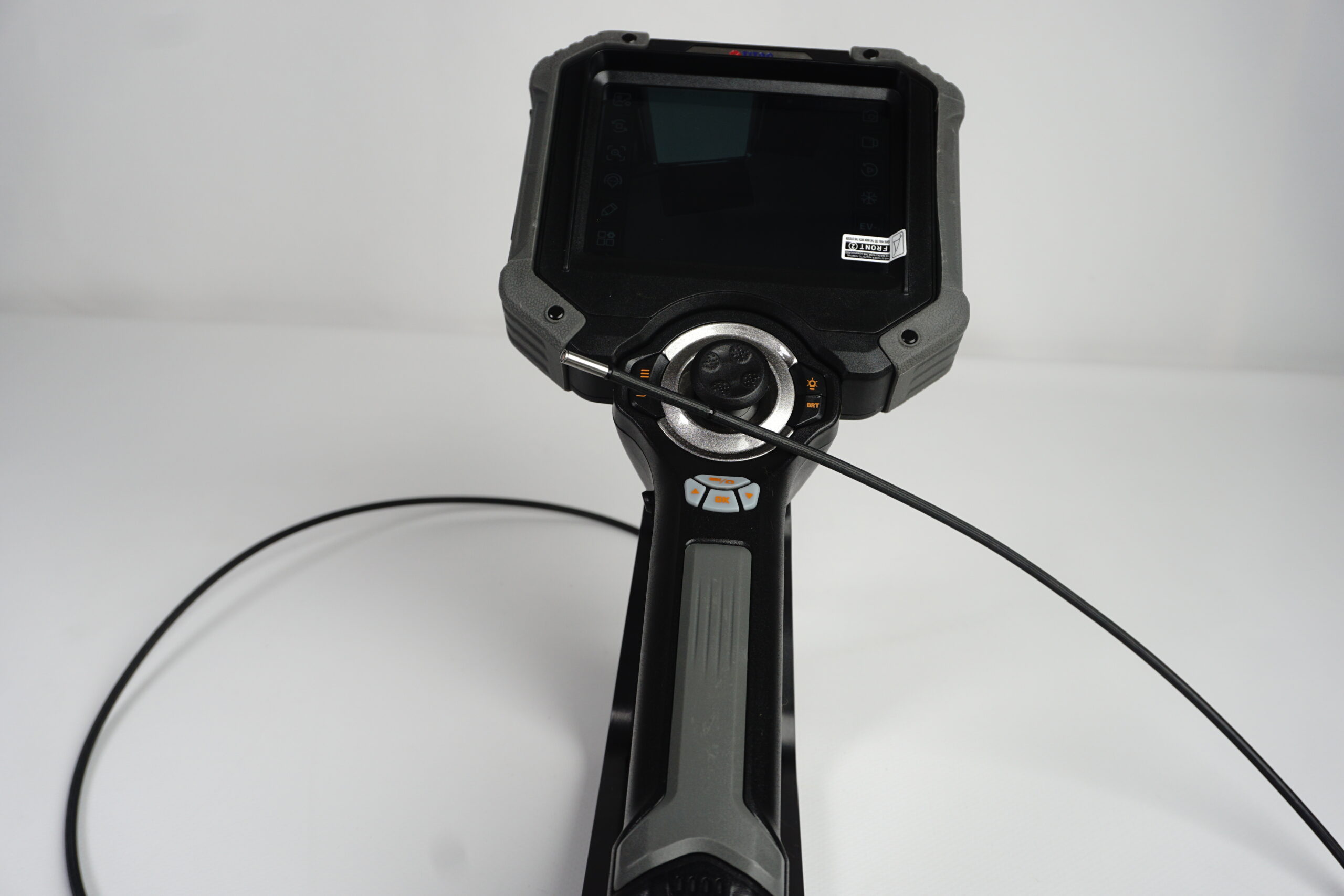

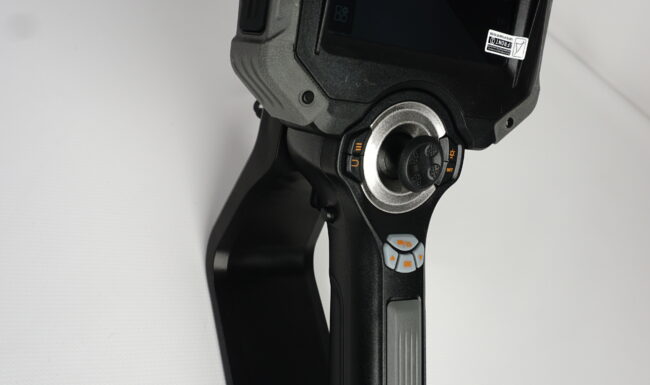

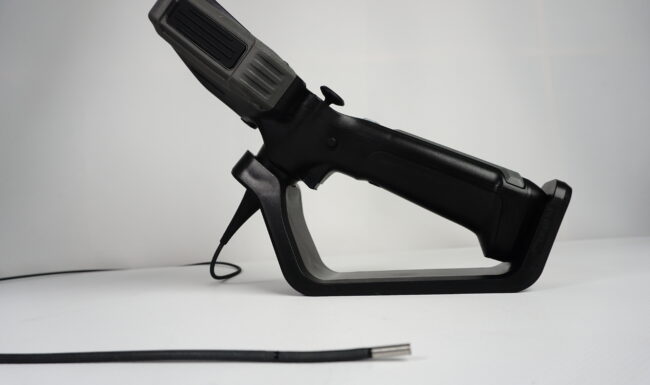

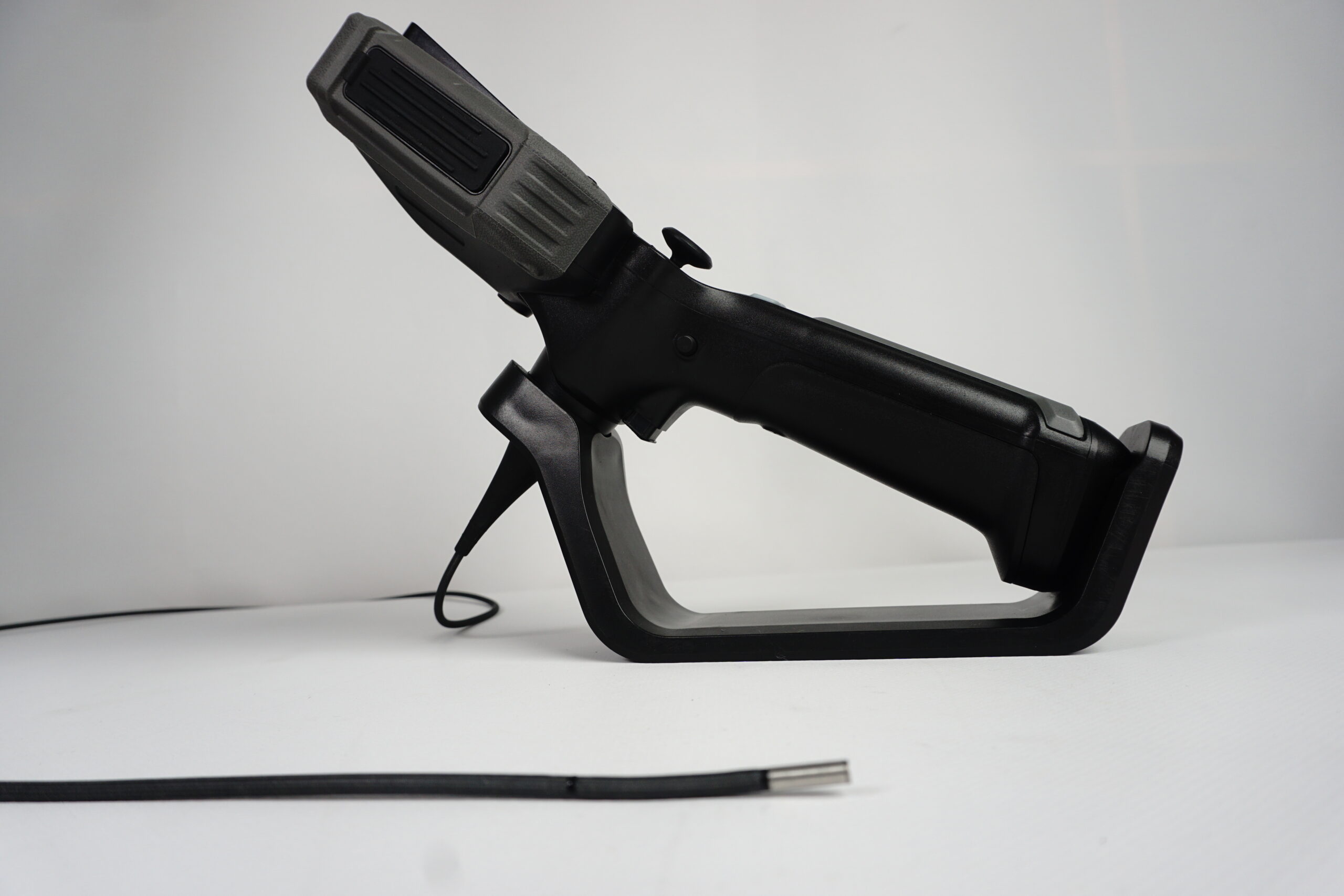

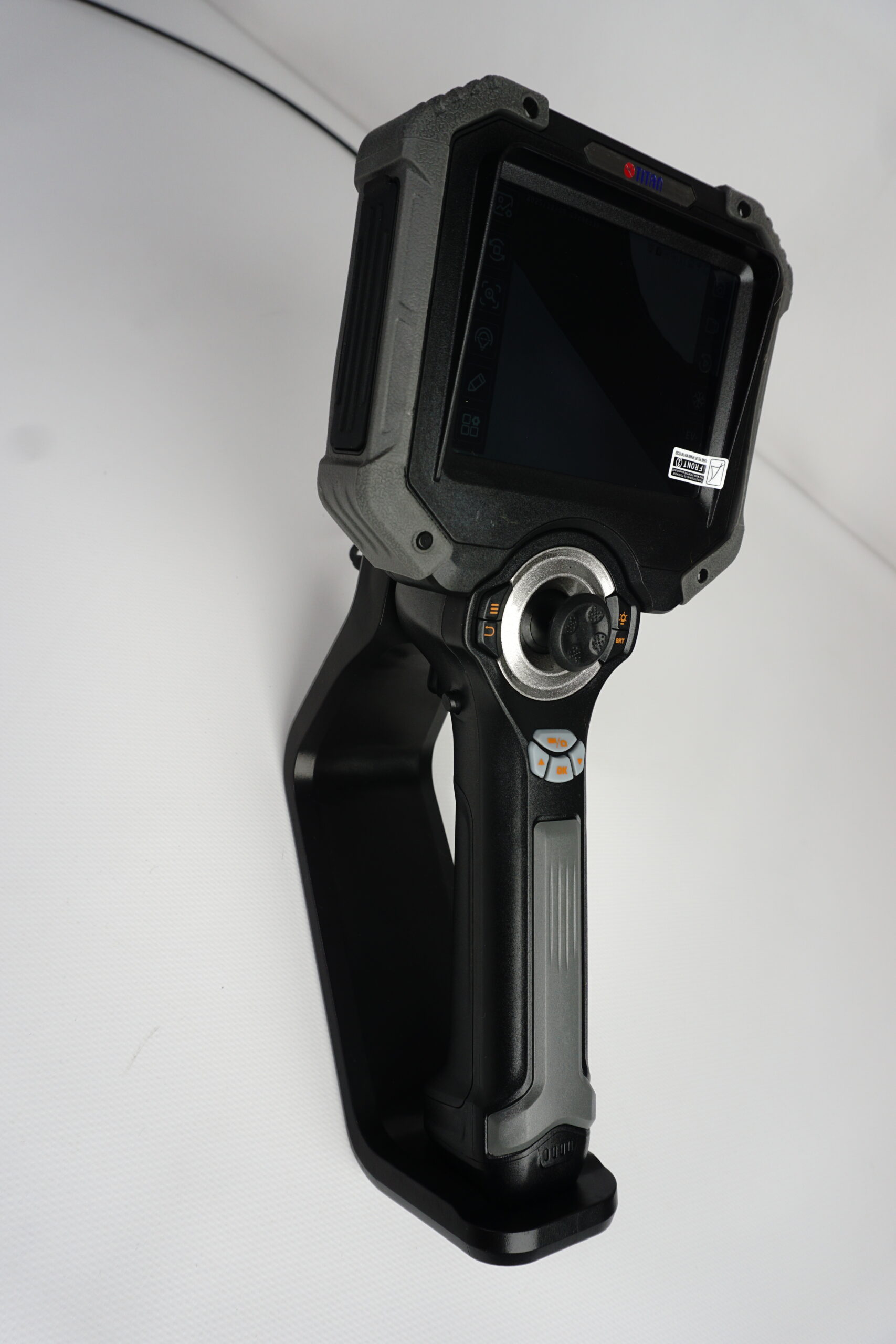

Video borescope with 5.0″ screen, 6 mm camera with UV light, in all directions controllable
Conducted wavelength range 200–1200 nm.
Peak wavelength tolerance: ±3 nm
  • camera head: Ø 6 mm
  • length camera head: 1/9”
  • resolution: 1280×720 pixels                (1 mio. pixels)
  • depth of view: 8 ~ 150mm
  • view of angle: 120°
  • camera housing: stainless steel
  • illumination: 365 nm guided by quartz glass fiber                        Power dissipation: 3 watts
  • optics: optical glass
  • IP class:  IP67
  • control camera head: all ways
  • swivel head length: 4 cm
  • angle of pivotable head:                one side > 120°
  • bending radius: 15 mm
  • cable length about: 150 cm
  • material of pivotable head:    tungsten braided
  • dimension: 15.5 x 13.9 x 5 cm
  • Display: 5″ Touchscreen (1024×768 pixels)
  • Outer material:                        resistant ABS housing
  • Power: Lithium Battery 2×3350 mAh
  • Charging Current: 5V/2A
  • illumination: manual adjustment
  • Storage: SD-card max. 64 GB          (32 GB incl.)
  • White balance: adjustable
  • Photo resolution: 1280×720 JPG
  • Video resolution: 1280×720 MOV
  • keypad: menu, playback, video, photo, Zoom, BRT
  • Image selection: mirror image, preview, Rotation, freeze, negative
  • languages: Chinese, English, German, French, Portuguese

User manual TTS-TJ
