TTS-T Version

VIDEOSCOPE WITH TOUCHSCREEN

TTS-T1.6

Camera

  • camera head: Ф 1.6mm
  • camera chip: 1/18”
  • resolution: 400×400 pixels    (160.000 pixels)
  • depth of view: 3 ~ 50 mm
  • view of angle: 120°
  • illumination: 4 white LEDs
  • optics: optical glass
  • IP class: IP58

Probe

  • articulation: Non articulation
  • angle of pivotable head: Non
  • cable length about: 110 cm
  • material of cable: tungsten braided
  • Zoom: up to 7x
  • Max. cable length: 110 cm
TTS-T1.8 2W

Camera

  • camera head: Ф 1.8mm
  • camera chip: 1/18”
  • resolution: 400×400 pixels    (160.000 pixels)
  • depth of view: 3 ~ 50 mm
  • view of angle: 120°
  • illumination: 4 white LEDs
  • optics: optical glass
  • IP class: IP58

Probe

  • articulation: 2 way
  • angle of pivotable head: Non
  • cable length about: 110 cm
  • material of cable: tungsten braided
  • Zoom: up to 7x
  • Max. cable length: 110 cm
TTS-T2.0 4W

Camera

  • camera head: Ф 2.0mm
  • camera chip: 1/18”
  • resolution: 400×400 pixels    (160.000 pixels)
  • depth of view: 3 ~ 50 mm
  • view of angle: 120°
  • illumination: 4 white LEDs
  • optics: optical glass
  • IP class: IP58

Probe

  • articulation: 4 way
  • angle of pivotable head: > 90°
  • cable length about: 110 cm
  • material of cable: tungsten braided
  • Zoom: up to 7x
  • Max. cable length: 200 cm
TTS-T2.0S (with side view)

Camera

  • camera head: Ф 2.0mm
  • camera chip: 1/18”
  • resolution: 400×400 pixels    (160.000 pixels)
  • depth of view: 1 ~ 20/3 ~ 100 mm
  • view of angle: 120°
  • illumination: White LEDs
  • optics: optical glass
  • IP class: IP58

Probe

  • articulation: Non articulation
  • angle of pivotable head: Non
  • cable length about: 110 cm
  • material of cable: tungsten braided
  • Zoom: up to 7x
  • Max. cable length: 200 cm
TTS-T2.1W 2W

Camera

  • camera head: Ф 2.1mm
  • camera chip: 1/18”
  • resolution: 400×400 pixels    (160.000 pixels)
  • depth of view: 3 ~ 80 mm
  • view of angle: 120°
  • illumination: 5W white light fiber guide
  • optics: optical glass
  • IP class: IP67

Probe

  • articulation: 2 way
  • angle of pivotable head: > 120°
  • cable length about: 110 cm
  • material of cable: tungsten braided
  • Zoom: up to 7x
  • Max. cable length: 110 cm
TTS-T2.8W 4W

Camera

  • camera head: Ф 2.8mm
  • camera chip: 1/18”
  • resolution: 400×400 pixels    (160.000 pixels)
  • depth of view: 5 ~ 100 mm
  • view of angle: 120°
  • illumination: 5W white light fiber guide
  • optics: sapphire glass
  • IP class: IP67

Probe

  • articulation: 4 way
  • cable length about: 120 cm
  • material of cable: tungsten braided
TTS-T8.5CH

Camera

  • camera head: Ф 8.5mm            (3.7mm working channel)
  • camera chip: 1/18”
  • resolution: 400×400 pixels      (160.000 pixels)
  • depth of view: 5 ~ 100 mm
  • view of angle: 120°
  • illumination: 5W white light fiber guide
  • optics: sapphire glass
  • IP class: IP67

Probe

  • articulation: 4 way
  • cable length about: 100 cm
  • material of cable: stainless steel
Monitor
  • dimension: 12 x 9 x 2.5 cm

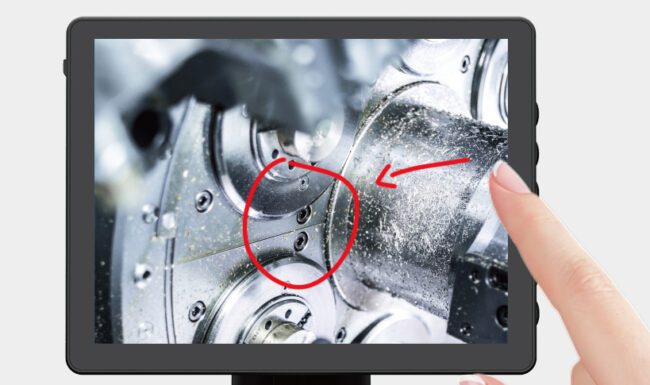

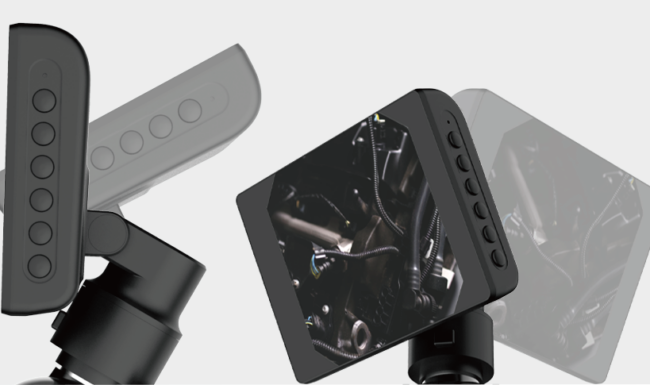

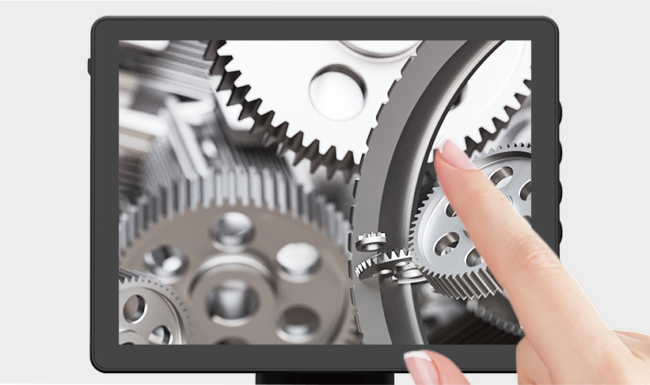

  • Display: 5.0“ Touchscreen (1024 x 768 pixel)
  • Batterie: 3700 mAh
  • Memory: max. 64 GB (32 GB incl.)
  • Outer material: resistant ABS housing
  • Charging current: 5V / 2A
  • illumination: manual adjustment
  • White balance: Adjustable
  • Photo resolution: 400×400 JPG
  • Video resolution: 400×400 MOV
  • Keypad: menu, playback, video, ZOOM, photo, BRT
  • Image selection: Mirror image, preview, Rotation, freeze, Negative
  • Languages: Chinese, English, other will follow

user manual TTS-T
