TTS-NP6.0(D) 4W







Double lens camera – 6mm

The TWIN camera is intended for examining hard-to-reach areas.
With this video endoscope, you can take high-resolution photos or videos. The camera cable and camera head of the TTS-NP6.0 (D) 4W are protected against water and dust in accordance with IP58. The camera cable has a control lever with which you can move the camera head 90 ° and 140 ° to the left and right.
Camera
  • camera head:                                       Ф 2 x 6.0mm x 27.0mm
  • length camera head: 1/8” / 1/10″
  • resolution: 750 x 620 pixels
  • depth of view: 10 ~ 100 mm /             5 ~ 50mm
  • view of angle: 120° / 90°
  • camera housing: stainless steel
  • illumination: 6 + 1 multiple white LEDs
  • optics: optical glass
  • IP class: IP58
Probe
  • articulation: 4 ways
  • swivel head length: 5.2 cm
  • angle of pivotable head:                one side > 120°
  • bending radius: 13 mm
  • Zoom: 2x, 4x, 8x
  • cable length about: 150 cm
  • material of cable: stainless steel silver mesh
  • IP class: IP58
Monitor
  • system dimension:                            33.5 cm x 14.5 cm x 8.0 cm
  • display: 5 inch TFT-LCD                (1280 x 720 pixels)
  • outer material: resistant PC housing
  • power: Lithium battery 2×3500 mAh
  • AC adapter: input 100-240VAC 50/60 Hz, output 5VDC
  • illumination: manual adjustment

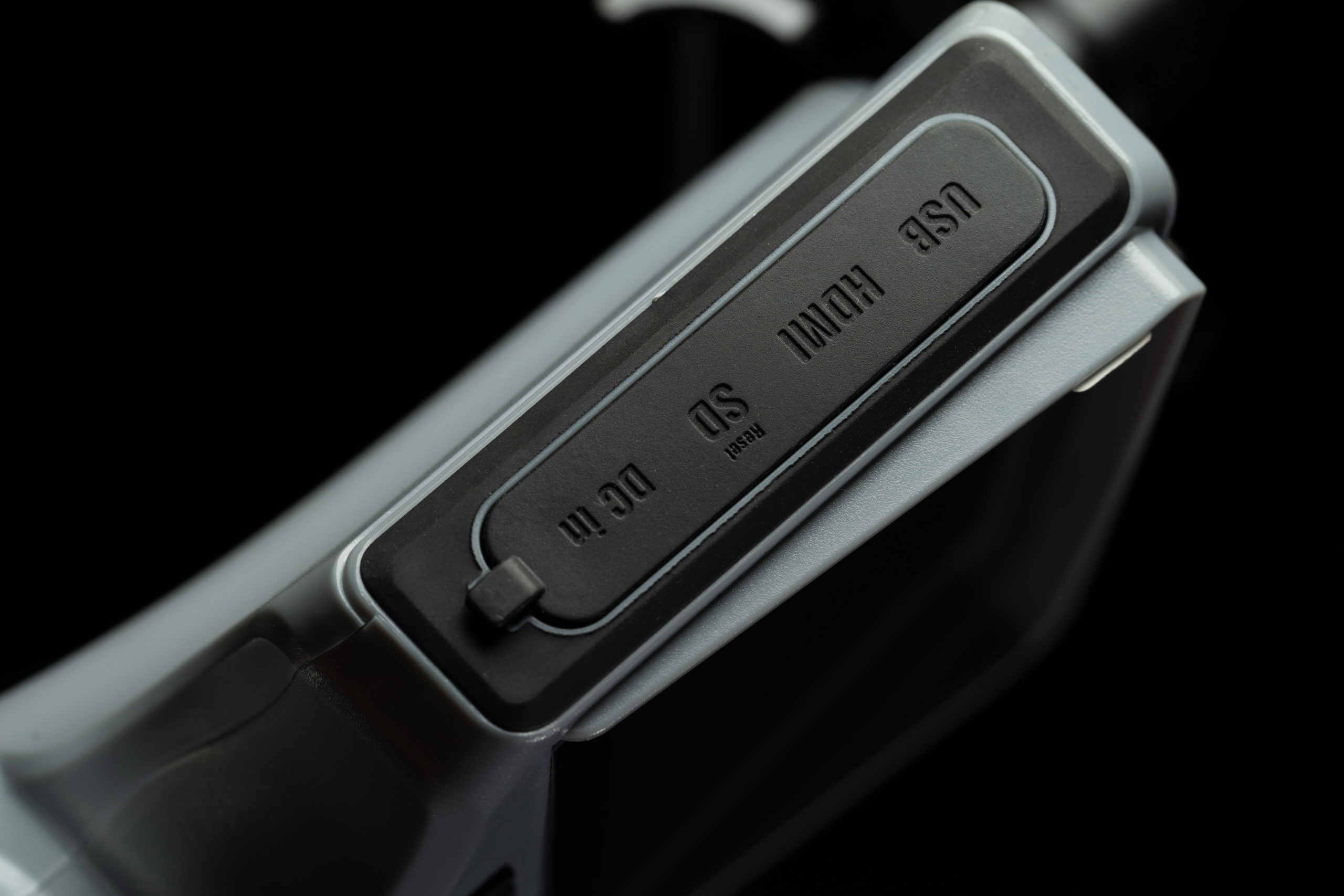

  • input/output connectors: HDMI
  • recording media: SD card support max. 32 GB (16 GB included)
  • photo resolution: 720 x 620 JPEG
  • video resolution: 720 x 620 AVI
  • image: mirror, enlarge, preview
  • multiple languages supported

user manual TTS-NP
