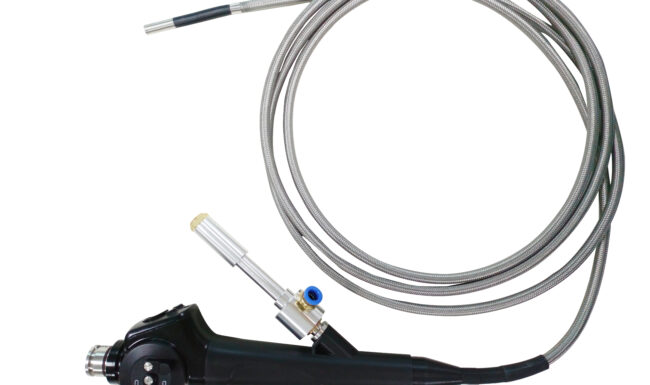

Mega endoscope with a resolution of 2 million pixel
usable for temperatures up to 260 ° C
A compressor must be connected for use in the high temperature range
  • camera head: Ф 8×25 mm
  • length camera head: 1/6”
  • resolution: 1920×1080 Pixel (2.000.000 Pixel)
  • depth of view: 10 ~ 200 mm
  • view of angle: 90°
  • camera housing: titanium alloy
  • illumination:                                    5W white light fiber guide
  • optics: sapphire glass
  • IP class:  IP67
  • control camera head: 2 ways
  • swivel head length: 4,5 cm
  • angle of pivotable head:                one side > 120°
  • bending radius: 13 mm
  • Zoom: 2x, 4x, 8x
  • cable length about: 100 cm
  • material of pivotable head:    stainless steel
  • max. cable length: 300 cm
  • dimension: 16 cm x 14,5 cm x 4.5 cm
  • Display: 5.0“TFT-LCD
  • Outer material:                        resistant PC housing
  • Using time: about 2 hours
  • Power: Lithium Batterie 2600 mAh/19.24Wh/7.4V
  • AC-Adapter: input 100-240VAC 50/60 Hz, output 12VDC
  • illumination: manual adjustment
  • Storage: SD-card max. 128 GB        (32 GB incl.)
  • White balance: automatic
  • Photo resolution: 1920 x 1080 JPEG
  • Video resolution: 1920 x 1080 MOV
  • keypad: menu, video, photo, BRT
  • Image selection: mirror image, preview, Rotation
  • languages: 7 languages supported
  • temperature resistance: max 260°C

User Manual TTS-MG
