TTS-NP4.0H 4W (1 million pixel)







Camera lens –  4.0mm Ф

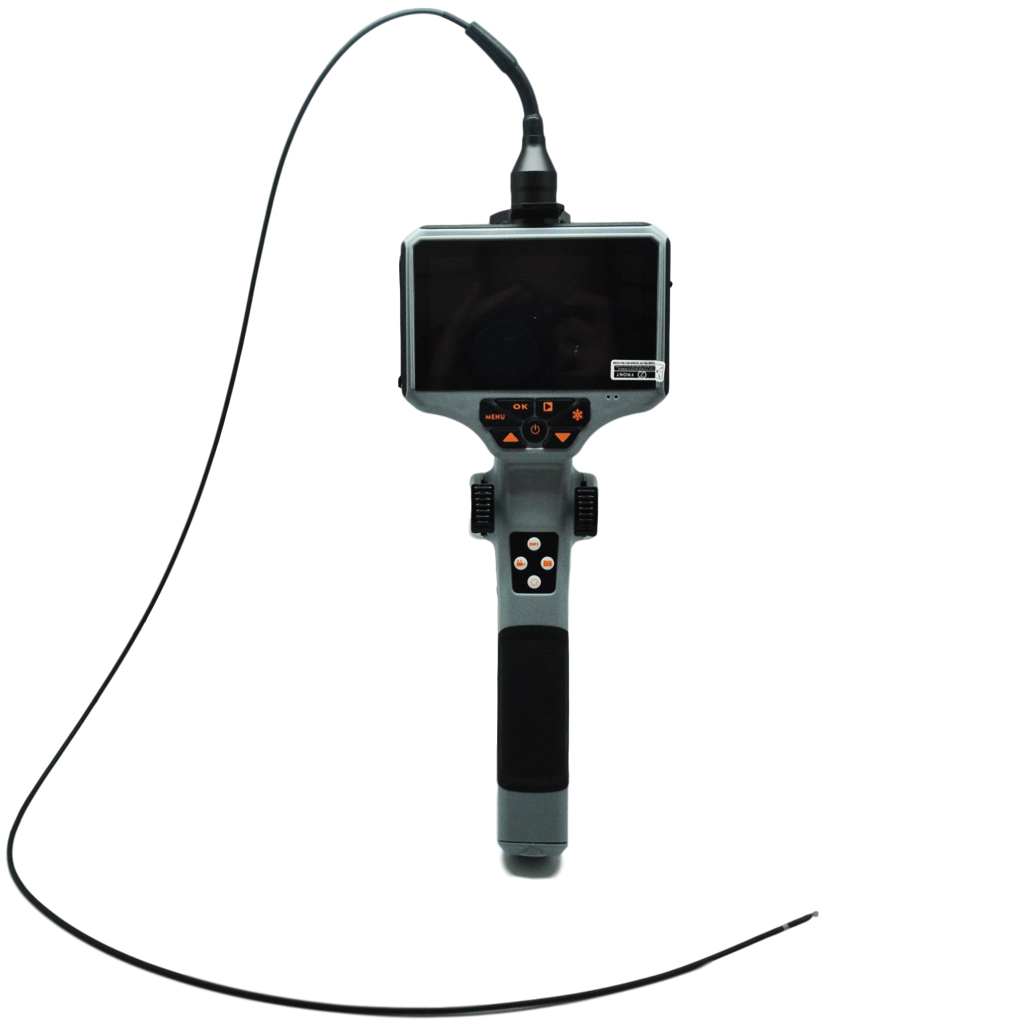

TITAN  4.0mm video endoscope with 1 million pixel provide one of the best equipment values in the industry.

With this device, you can take high-resolution photos or videos. The camera cable and camera head of the TTS-NP4.0 is protected against water and dust in accordance with IP58.


The camera cable has 2 control levers with which you can move the camera head to the right and left as well as up and down.

  • camera head: Ф 4.0mm x 13.0mm
  • length camera head: 1/9”
  • resolution: 1280 x 720 pixels
  • depth of view: 10  ~  200 mm
  • view of angle: 90°
  • camera housing: stainless steel
  • illumination: mutiple white LEDs
  • optics: optical  glass
  • IP class: IP58
  • control camera head: 4 ways
  • swivel head length: 3.5 cm
  • angle of pivotable head:                  one side > 150°
  • bending radius: 8 mm
  • Zoom: 1 x 2x, 4x
  • cable length about: 150 cm
  • material pivotable head:              stainless steel / tungsten braided or silver mesh
  • IP class: IP58
  • system dimension:                        33.5 cm x 14.5 cm x 8.0 cm
  • display: 5.0 inch TFT-LCD (1280 x 720 pixels)
  • outer material: resistant PC housing
  • power: Lithium battery 2×3350 mAh
  • AC adapter: input 100-240VAC 50/60 Hz, output 5VDC
  • illumination: manual adjustment

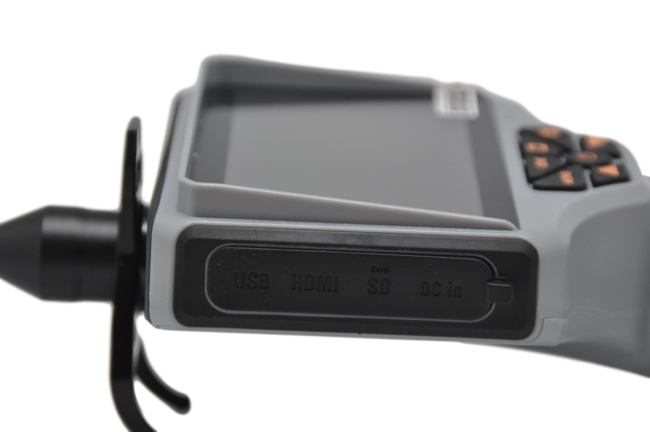

  • input/output connectors: HDMI
  • recording media: SD card support max. 32 GB (16 GB included)
  • photo resolution: 1280 x 720 JPEG
  • video resolution: 1280 x 720 AVI
  • keypad: menu, video, photo shot
  • image: mirror, enlarge, preview
  • multiple languages supported

user manual TTS-NP
